C02 FPV Micro Camera
Sold out
$19.99
C02 Micro Camera is the lightweight camera customized for those weight sensitive micro whoop drones, like Meteor65, Beta65S, Beta85 pro2, HX100SE. Adapted a 1/4'' CMOS sensor, 2.1mm lens for 1200TVL resolution and excellent latency while minimizing the weight to 1.4g. Packed with the micro canopy, protect your camera well in a hard crash.
Plug-N-Play
C02 camera features a JST-0.8 connector, special design in plug-and-play, makes it easy to install without soldering. Suitable for BeeBrain flight controllers.
Bullet Points
- Miniature, and lightweight design, weight at only 1.4g. Best match with 5.8G A01 VTX on micro whoop drone
- 1200TVL resolution and 1/4" CMOS sensor ensure a high-quality and clear image
- Global WDR camera, 16:9 aspect ratio, shoot clear dynamic image even in low light condition
- 2.1mm lens, FOV 160° beyond the wide-angle for recording more wide and beautiful scenes
- The package comes with an injection molding canopy, more durable, which is the best combo with C02 camera
Specification
- Item: C02 Camera
- Image Sensor: 1/4" CMOS Sensor
- Horizontal: 1200TVL with Global WDR
- Signal System: NTSC
- Lens : 2.1mm(M8) FOV 160°
- S/N Ratio: >50db
- Electronic Shutter Speed: Auto
- Auto Gain Control (AGC): Auto
- Min. Illumination: 0.01Lux@1.2F
- D-WDR: Auto
- Day/Night: Color
- Power: DC 3-5.5V
- Current: 110mA@5V / 120mA@3.3V
-
Housing Material: ABS

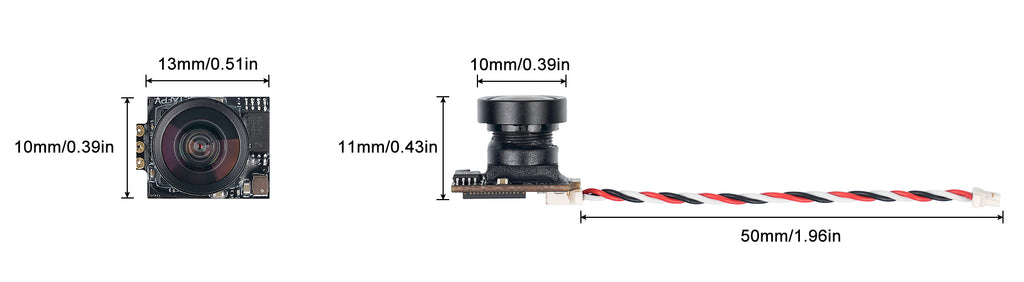

- Dimension: 13*11mm
- Net weight: 1.4g

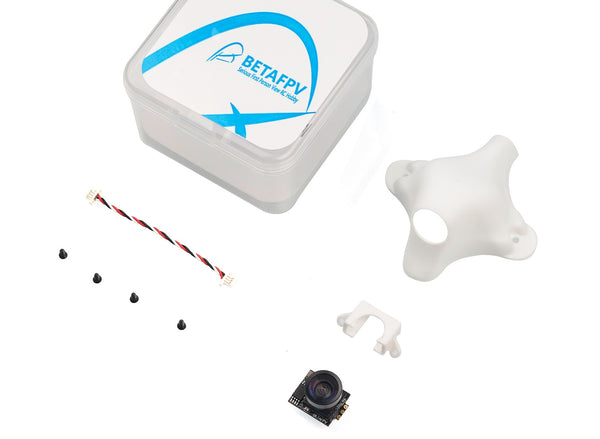

Package
- 1 * C02 FPV Micro Camera
- 1 * Injection Molded Canopy
- 1 * 1/4'' Camera Mounting hardware
