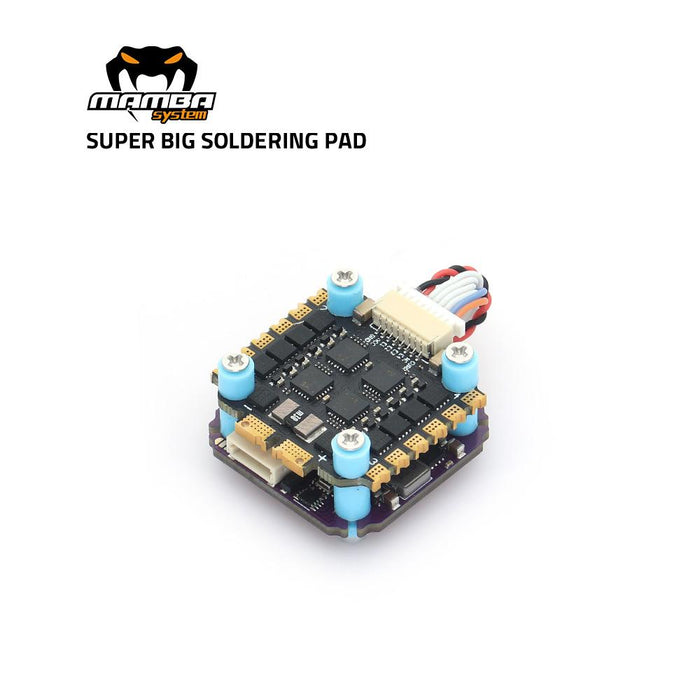

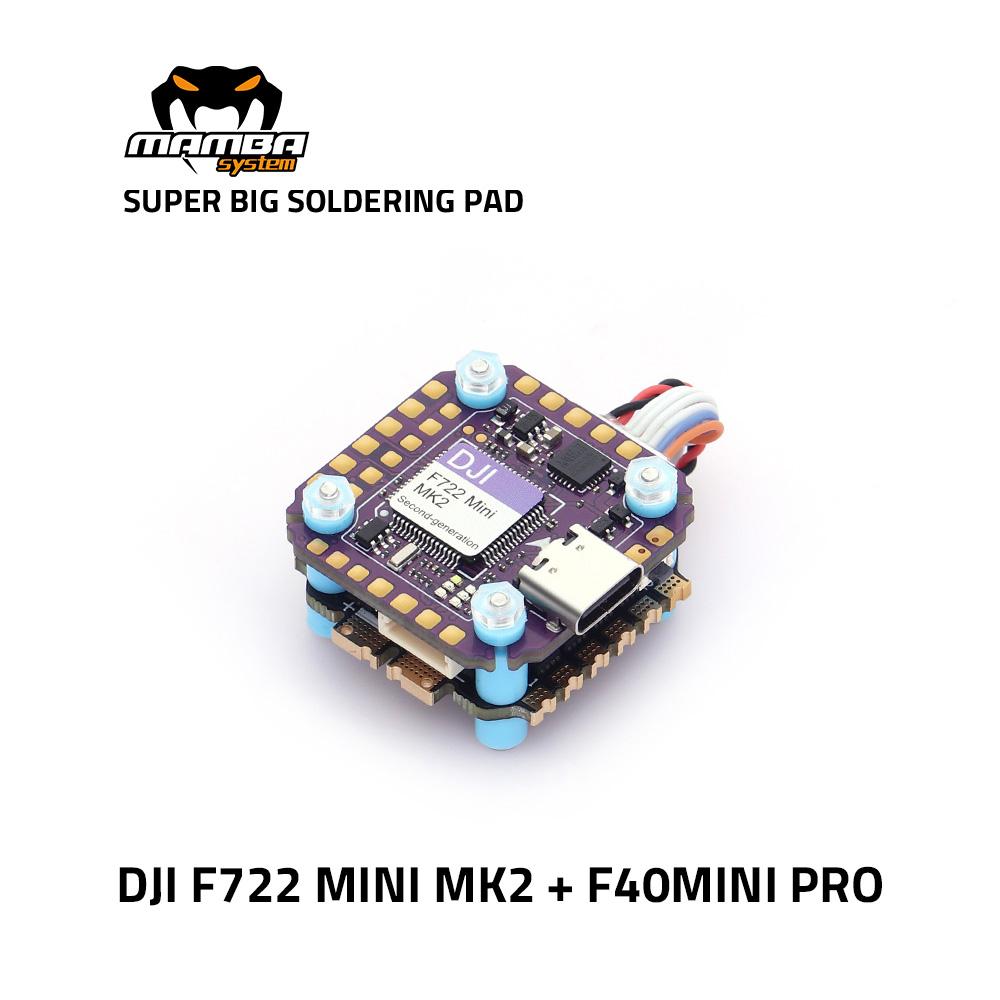

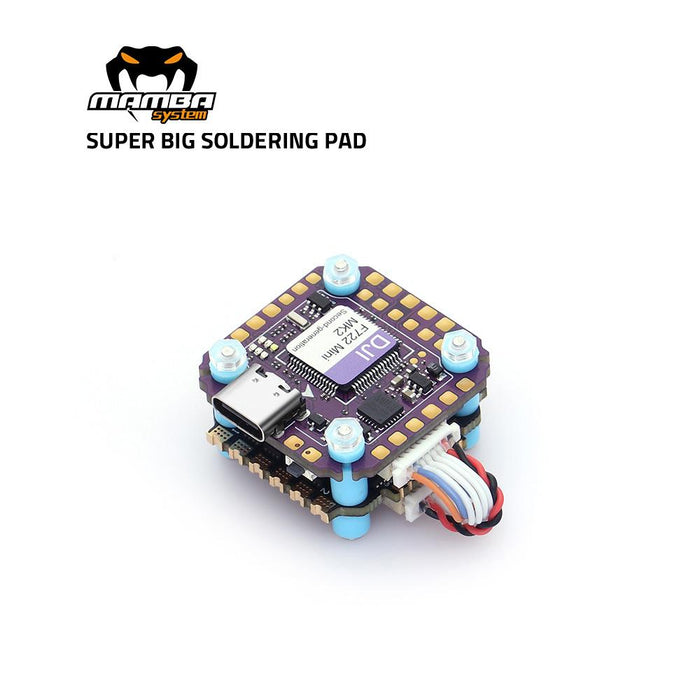

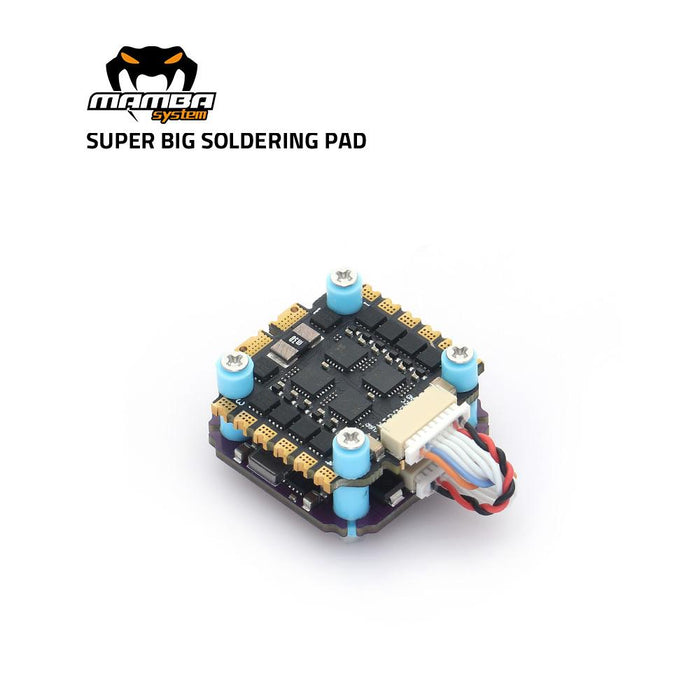

MAMBA DJI F722 Mini MK2 40A 2-6S 32bit Flight Controller Stack

Save $17.19
$128.99
$111.80

Description

MAMBA DJI F722 MINI MK2 40A 2-6S 32BIT FLIGHT CONTROLLER STACK

FC Specifications

MAMBA DJI F722MINI MK2
MCU: 216MHz STM32F722RET6
GYRO: MPU6000
Barometer: Yes
OSD: Yes
Blackbox: NO
Uarts: 6 Set
ESC Soft: Dshot300/600/1200

ESC Telemetry: Yes
Power Led: Yes
LED Controller: BF LED
F.Port: Yes
RSSI: NO
Buzz: Yes
Input: 2~6S Lipo (8.4~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 2.5A /9V 2A
MOUNTING: 20mm, M2

ESC Specifications
MAMBA F40 MINI PRO
INPUT VOLTAGE: 2~6S Lipo (8.4V~25.2V)
CONTINUE CURRENT: 40A×4
BURST CURRENT: 45A (10S)
BEC: No
Target:MAMBA F40MINIPRO
SOFT: Dshot300/600/1200
TVS Protection: Yes
MOUNTING: 20mm, M3/M2

Supply :
High-Frequency 470uF/35V ×1
8pin sh1.0 ×2
DJI 8pin ×1
16AWG 60mm ×2
AMASS Original XT60
